Original Petromax/Hipolito lantern spare parts

Exploded view of Petromax Lantern click here!
Reference Product description

Sterling

'Servicing and Repairing  paraffin pressure lamps' The definitive step by step guide to servicing and repairing lamps of the Petromax/Optimus type, click here to see photo.,  Temp out of stock 10.50

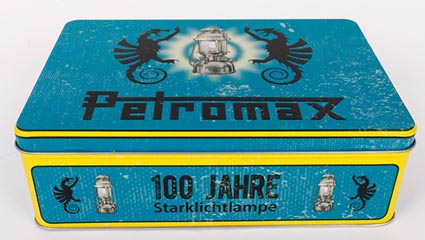

829 Petromax 500cp Collectors lantern, click here to see photo., Temp out of stock 109.95

PMAX SET/500
PMAX SET/150

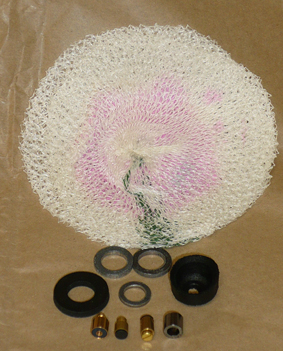

Spare parts kit for 350cp & 500cp lanterns
Spare parts kit for 150cp lanterns
18.95

3/500 China nozzle, 500cp 5.40
3/250 China nozzle, 250cp 8.90
3/150 China nozzle, 150cp 5.40

PMAX 4/500 Petromax 500cp & 350cp Mantle, Pack 10, Petromax Original 16.85
4/500
4/500 Helox
Petromax 500cp & 350cp rosette mantle,
Petromax 500cp, Superior mantle, sock type.
1.80
2.00
4/250 250cp Mantle 1.60
4/150 150cp Mantle 1.60
4S Double tie 'shockproof' mantle 1.90

Support Support for 'shockproof' mantle  13.25

6P Petromax Pump piston & '0' ring complete 6.25

6L Petromax Pump piston & leather complete



9.60

10 Pump valve complete 6.95

11 Washer for filler cap or gauge 1.15

14
14M
Screw to fit bottom plate to tank Nickle
Screw to fit bottom plate to tank Brass
1.50

17 Check valve cone with packing 0.80

18 Pump valve spring 1.20

20 Clip for mixing tube 0.60

21 Screw for mixing tube clip 0.90

22 Cross bar for mixing tube clip 1.00

33/5 Mixing tube 500cp 8.95
33/1 Mixing tube 150cp 8.95

34 Gas chamber 500 & 350  7.95
34/2 Gas chamber 250cp  7.95
34/1 Gas chamber 150cp  7.95

35 Spirit dish plated, for preheating 6.95

35M Spirit dish brass, for preheating  6.95

37/38 '0' rings for pump piston, pair, Petromax 2003 on 1.65

40 Pump knob, Blue Petromax, Black for Geniol, Aida etc. 2.10

41 Pump locking disc 1.05

42 Pump cap, plated 2.85
42M Pump cap, brass 2.85

44 Pump spring 0.50

45 Piston plate 1.00

46 Pump leather  2.30

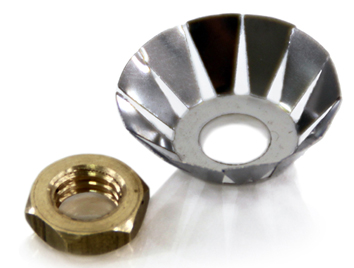

46S Spreading Spring for pump leather, keeps leather in contact with pump bore and improves pump performance.  2.00

47 Piston nut 0.72

50/5 Nipple 500cp  3.50
50/3 Nipple 350cp  3.50
50/2 Nipple 250cp  3.50
50/1 Nipple 150cp  3.50

66 Spanner/gauge 4.75

67 Plastic filler can,  3.60

68/5 Cleaning needle 2.75
68/3 Cleaning needle  2.75
68/2 Cleaning needle  2.75
68/1 Cleaning needle  2.75

74 Glass Chimney Hipolito 500cp & 350cp, Petromax 500cp 11.50
74VF Glass Chimney Hipolito 500cp & 350cp, Petromax 500cp, frosted with vertical clear stripe, to check mantle condition 13.25
74/2 Glass Chimney 250cp 11.50
74/1 Glass Chimney 150cp 13.95

G834 Glass Globe for Petromax #834 200cp Do-nut lamp 9.95

83 Pump valve washer 0.50

90 Lead Washer for vapouriser 0.95

104 Conducting rod, complete 500cp & 350cp 6.25
104/1 Conducting rod, complete 150cp 6.25

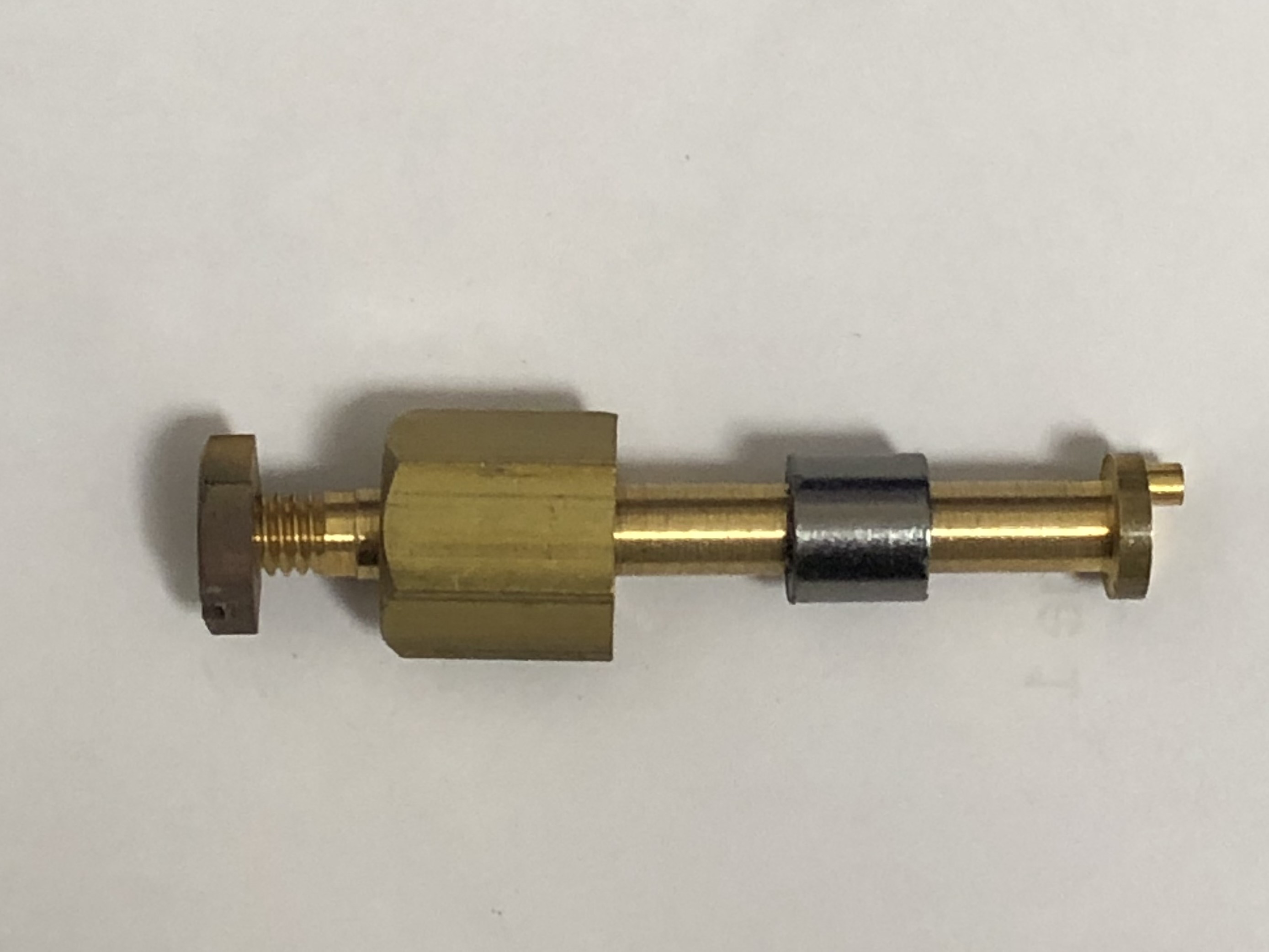

105 Excentric shaft, Petromax & Hipolito 2.00

107 Nipple for excentric 2.40

108 Graphite packing 0.95

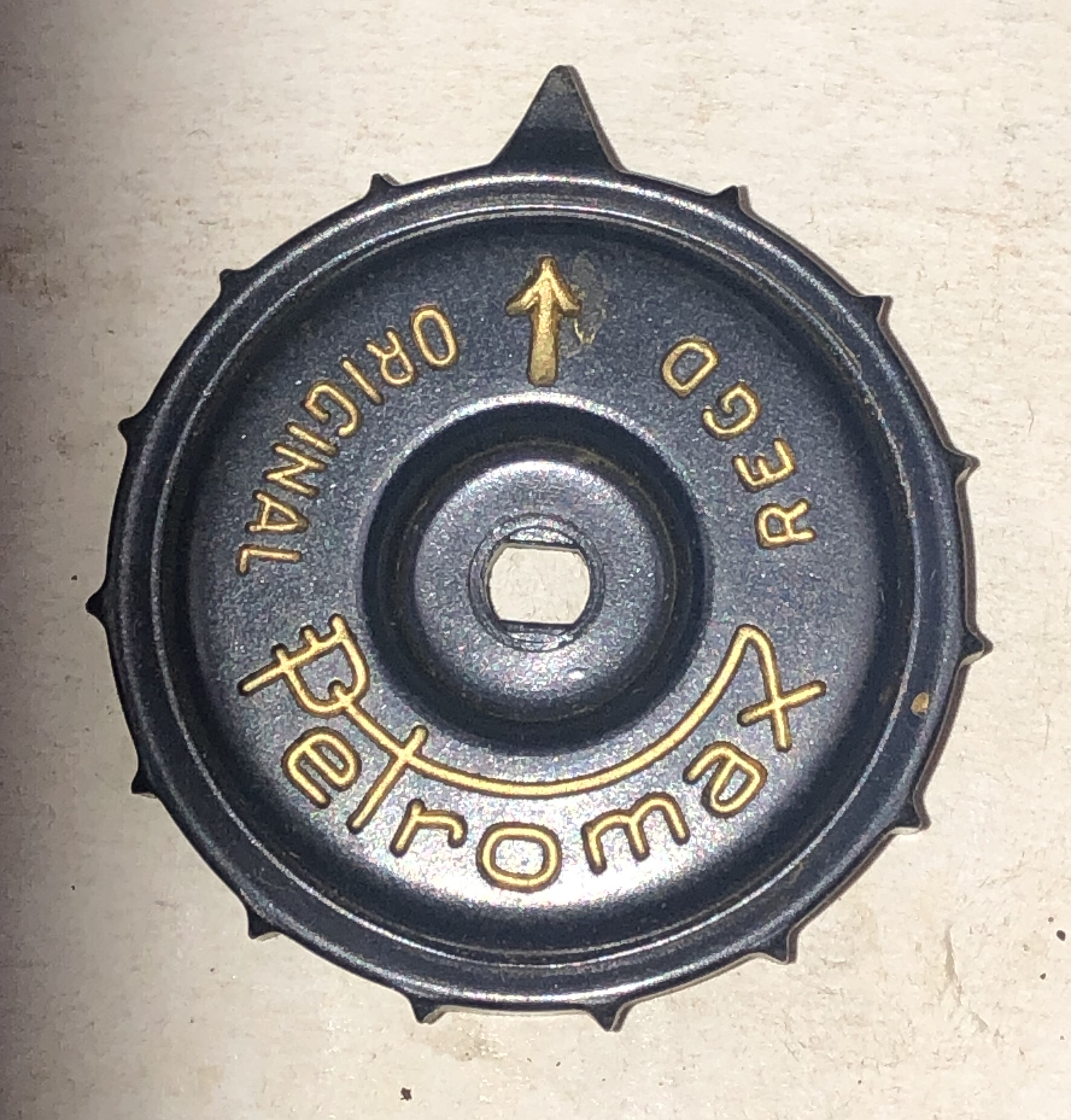

111 On-Off wheel :-
Blue, Petromax logo
Black, no logo for Hipolito, Geniol, Etc.
2.00

112
227
Nut for wheel
Star washer for wheel
1.00
0.70

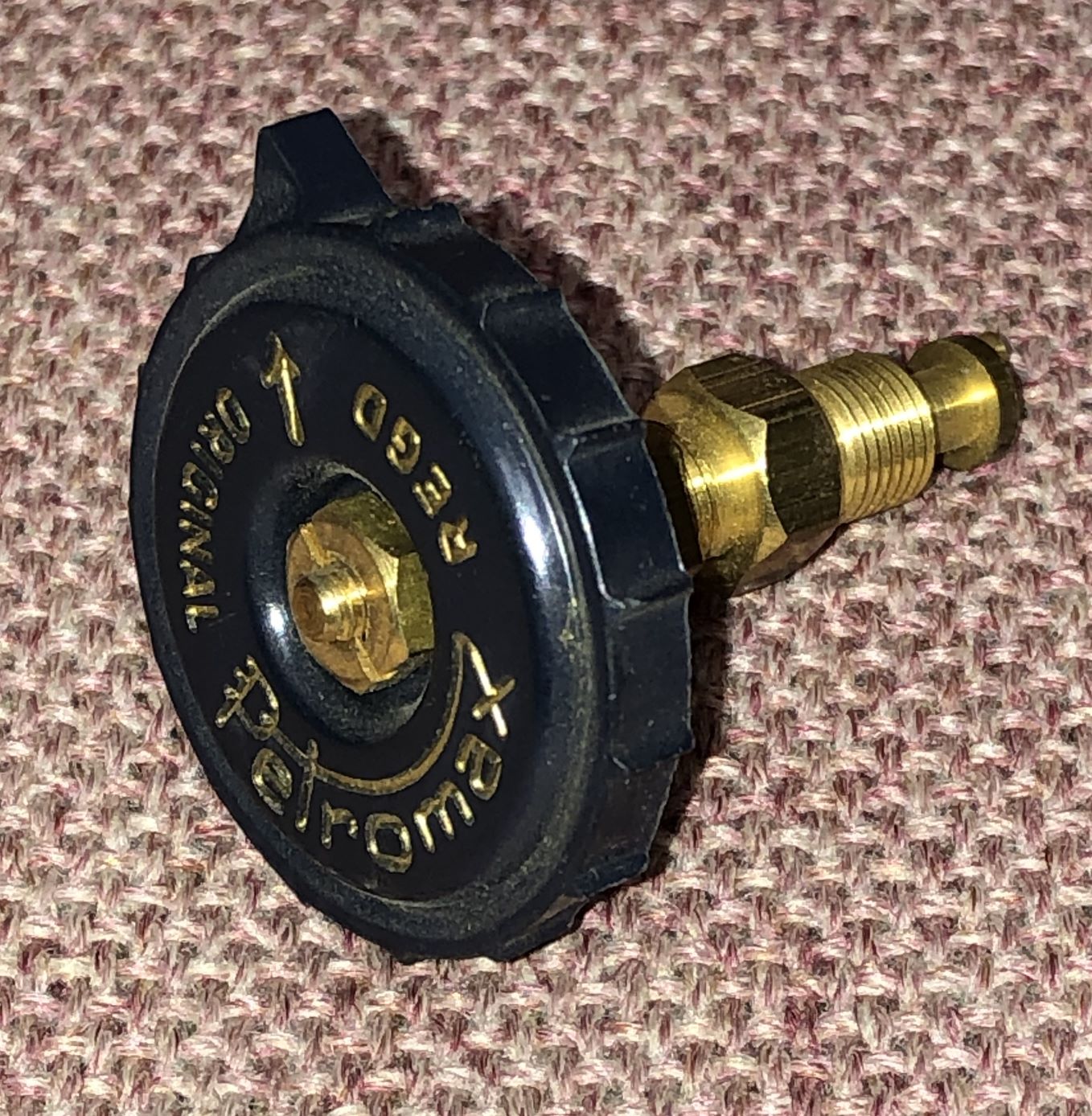

114 Eccentric complete 9.50

P117 Inner hood, Petromax 500cp 27.25

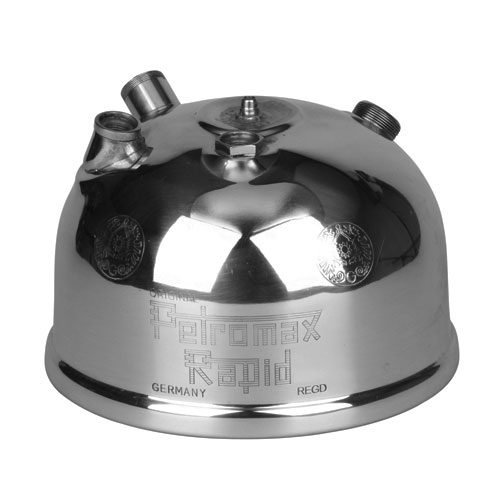

P118 Fuel tank without fittings Petromax 500cp 48.95

119 Key for cleaning needle    1.30

121 Frame with handle Petromax 500cp  27.00

122C
122M
Centre base for frame, chrome
Centre base for frame, brass Petromax 500cp
2.75

123 Brass hood, nickel plated, Petromax 500cp 30.95
123M Brass hood, Petromax 500cp 30.95

149 Filler cap gauge, plated 16.60
149M Filler cap gauge, brass 16.60

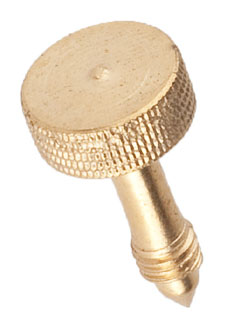

149-1C Air release screw for chrome filler cap gauge 2.25

149-1M Air release screw for brass filler cap gauge 2.25

149G Plastic lens for filler cap gauge, 2.25

152 Upper vapouriser with nipple 500 & 350cp 27.95
152/1 Upper vapouriser with nipple 150cp 27.95

153 Lower vapouriser 24.95

165 Plastic filler funnel 3.75
180 Cleaning needle, pre heater 0.90

187 Filter for preheater 0.75

193 Vapouriser valve washer 1.10

195 Vapouriser valve shell 2.20

220 Preheater flame tube 5.40

221 Preheater nipple, 3.90

224 Connecting piece for preheater 8.40

226 Rapid preheater complete 20.95

229 Check packing and screw 2.95

G834 Glass dome for Petromax 834 Donut lamp 9.95
P/MAX BAG500 Transport Bag for lamp & reflector 24.95

P/MAX TOPREF Polished steel reflector to reflect light down,  32.95
P/MAX INS Instruction booklet for the Petromax lamps with exploded view and part numbers. Also useful for Optimus 1350 & 1550 3.00
