Optimus 11 "Explorer" Stove

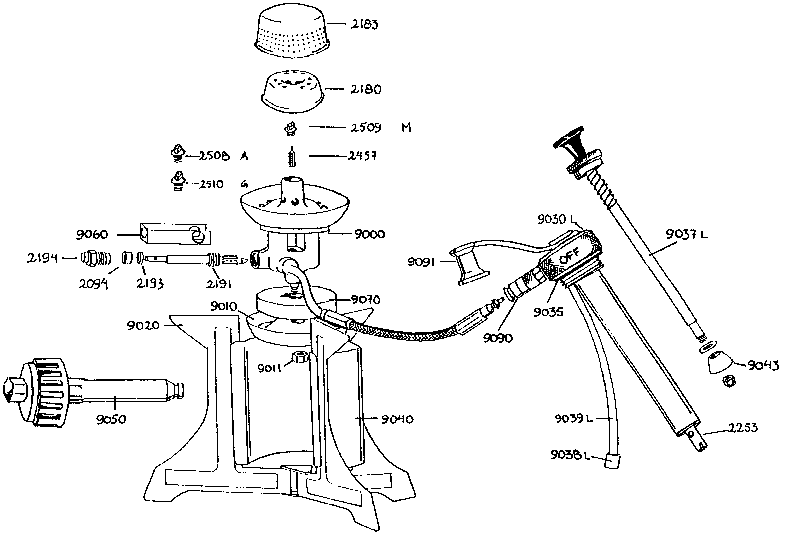

Exploded view.

2094 Graphite packing
2180 Inner cap
2183 Outer cap
2191 Valve spindle
2193 Metal ring
2194 Stuffing box
2253 Punp valve complete
2457 Cleaning needle
2508 Alcohol/spirit jet 'A'
2509 Multifuel jet 'M'
2510 Gasoline jet 'G'
9000 Burner unit with fuel hose
9010 Priming cup
9011 Nut
9020 Pan support
9030L Pump unit complete
9035 Rubber packing'
9037L Pump rod complete
9038L Fuel strainer
9039L Fuel feed hose
9040 Windshield
9043 Leather pump washer
9050 Multikey
9060 Slide valve
9070 Priming wick
9090 Quick coupling
9091 Protector lid for quick coupling
9092 'O' ring, quick coupling
