Aladdin burners and Galleries,
Some pictures for you to browse, identify your lamp or gallery here.
Sometimes lamps have been 'made up' of assorted parts, particularly if purchased from 'Antique' or 'curio' shops. We have even seen 'Victorian' model 21 Aladdin lamps advertised for sale...!
Check the pictures below to identify your burner or gallery, (which is the bayonet-fitting part on the top of the burner where the chimney and mantle fit). This is essential to getting the correct chimney and mantle for your lamp.
The burner is easily identified by the writing or number on the winder knob, this information is all you need to identify the correct wick for your lamp..

  Best viewed with your browser text size set to medium

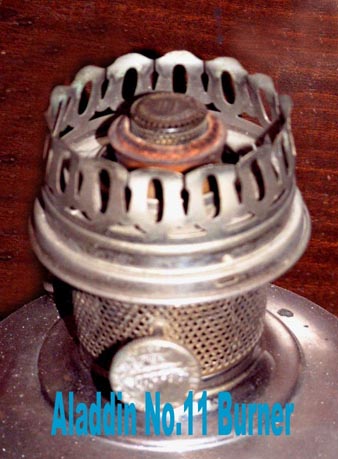

The 'Heelless' gallery fitted to the Model 11 lamp, this lamp has a centre draught burner with a tube running through the tank. The foot of the lamp will have a ring of holes to allow airflow to the centre draught tube.
This gallery takes the Aladdin 'Heeless' chimney and 'Kone Kap' mantle.
UPDATE 2014:-
'Kone Kap' mantles are currently out of production, model 11 and earlier lamps can be used with the 'Kone Kap' adaptor which allows the later type 'Loxon' mantle to fit.

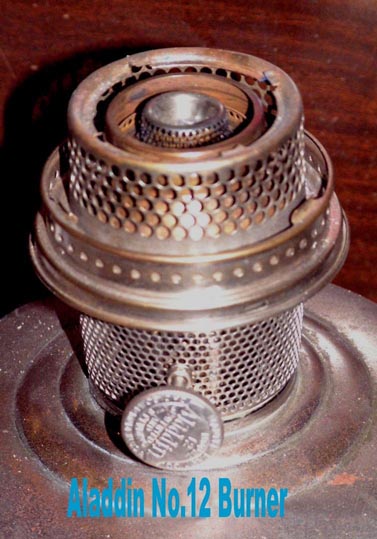

The very different 'Loxon' gallery fitted to the Model 12 lamp, this lamp also has a centre draught burner with a tube running through the tank. The foot of the lamp will have a ring of holes to allow airflow to the centre draught tube.
This gallery takes the 'Loxon' chimney and 'Loxon' mantle.

This gallery was also fitted to the 'Super Aladdin' #14 burner which was introduced to replace the Model 12. Something of a misnomer as the 'Super Aladdin' was a cheaper design, side draught burner. However the opportunity was taken to strengthen the wick winding mechanism, always a weakness on the Model 11 & 12.

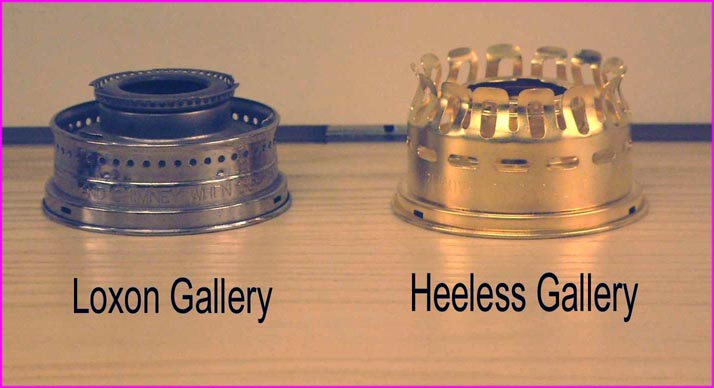

LEFT :- The different 'Loxon' gallery fitted to the Model 21 and early Model 23 lamps, this lamp has a side draught burner. This gallery takes the 'Loxon' chimney and 'Loxon' mantle.
RIGHT :- The 'Heeless' gallery fitted to the later & current Model 23 lamp, this lamp has a side draught burner. This gallery takes the 'Heeless' chimney and 'Loxon' mantle.
What years were UK Aladdin Lamps made?:-
Model 11= 1922 -1928, Model 12= 1928 -1935,
'Super Aladdin'= 1932 -1953,
Model 21= 1953 -1963, Model 21c= 1963 -1969
Model 23= 'Loxon' 1969 -1972, Model 23= 'Heeless' 1972-Today.
